Vendor Punchout Catalog

Overview

Microix punchout utilizes cXML integration standard. The end user from the buying organization initiates a punch out requests from Microix requisition application and enters the supplier’s web-based catalog. The end user adds items to their shopping cart while both applications maintain their connections. When the end user is ready to check out, the shopping cart with the selected items is returned to Microix requisition application. The end user does not go through a typically business-to-consumer (B2C) checkout process. After receiving the shopping cart, a requisition is generated in Microix and is routed through the organization for financial approval. Once the order is approved, a purchase order is generated from Microix and sent to the supplier to fulfill.

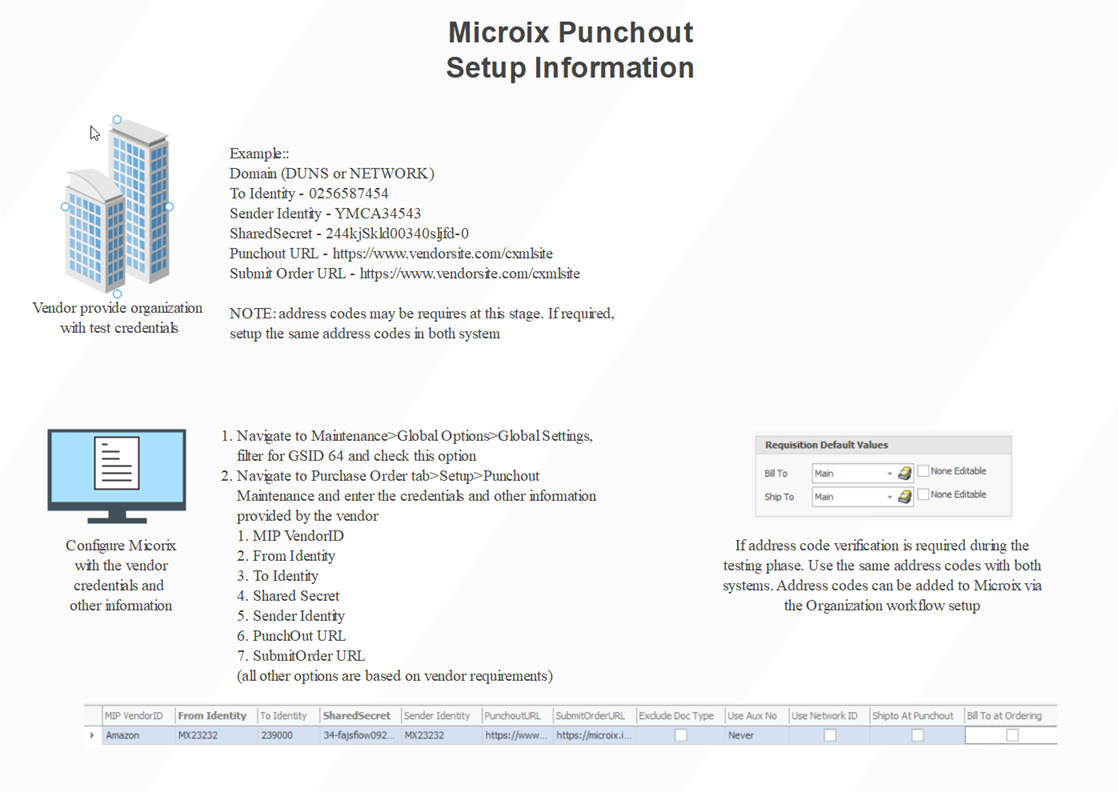

Setup Items:

1. MIP VendorID - Select MIP Vendors ID value

2. From Identity - Value provided by vendor

3. To Identity - Value provided by vendor

4. Shared Secret - Value provided by vendor

5. Sender Identity - Value provided by vendor

6. PunchOut URL - Value provided by vendor (URL to shopping catalog)

7. SubmitOrder URL - Value provided by vendor (URL where orders are submitted)

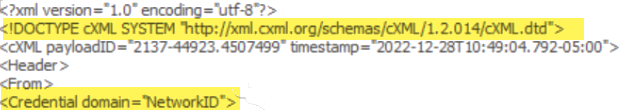

8. Exclude Doc Type - Only check if vendor specifically states to not include doctype in CXML file, otherwise leave it unchecked

9. Use Aux No - select based on vendor use of Auxiliary part numbers. Discuss with vendor and set accordingly.

10. Use Network ID - some vendors use DUNS or NETWORKID, discuss with vendor and set accordingly. For most vendors, this option is not checked

11. Shipto At Punchout - check this option if vendor requires a shipping address during the start of a punchout request. Results will include the shipping address in the CXML to the vendor. Normally not required unless vendor states otherwise

12. BillTo at Ordering - check this option if vendor requires a bill to address when order is submitted

IMPORTANT! Bill to and Ship to address code are required to match vendor records. If not, punchout failures may occur.

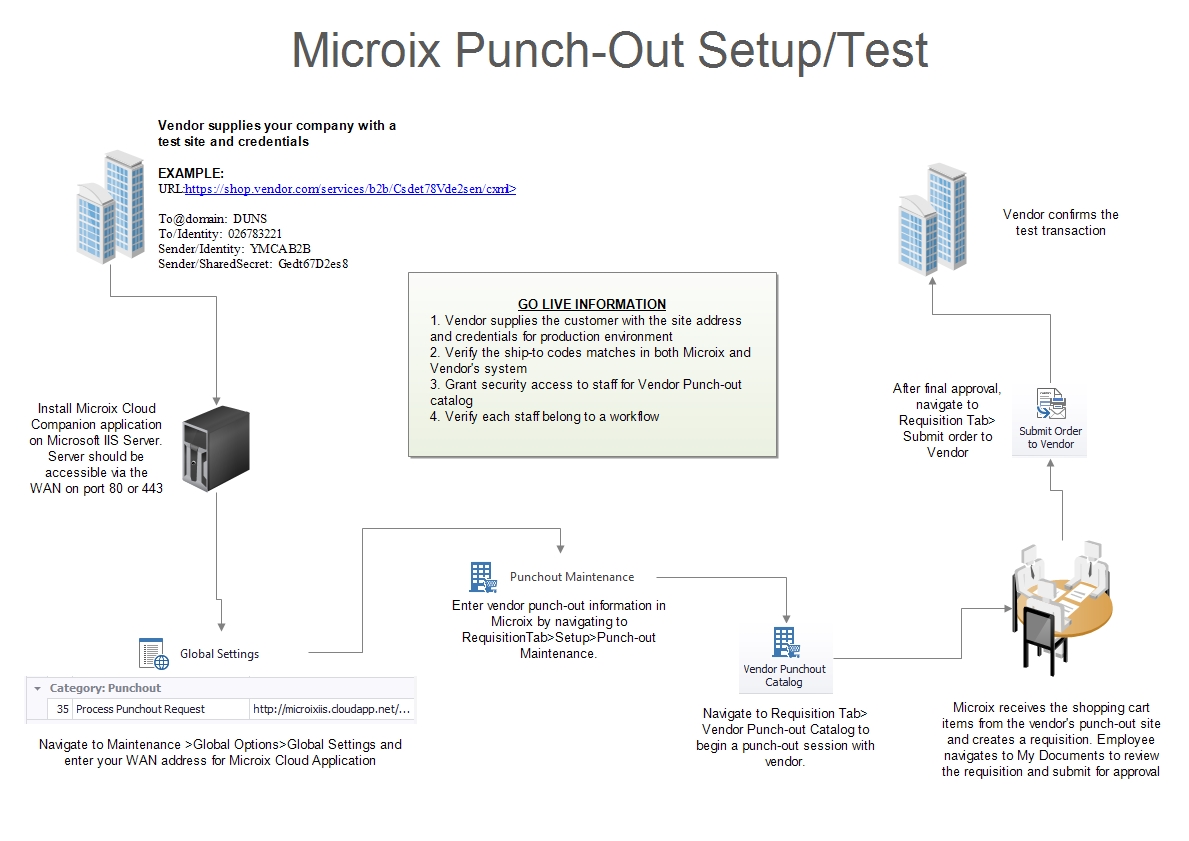

After setup is completed, test the process using the steps below:

1. Navigate to Requisition/Purchase Order > Vendor Punchout Catalog

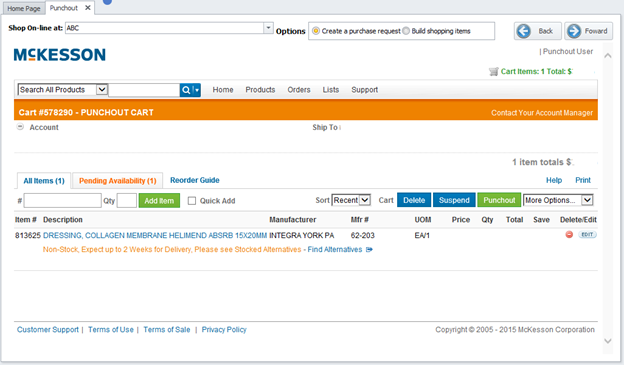

2. Select the vendor from the lookup control and click on start. Microix will open a web browser and navigate to the vendors on-line store. From there , the user will pick items and add to the shopping cart. When completed, user will click on a button called "Punchout" or "Submit to Procurement System" to complete the process and return the shopping cart to Microix.

3. After Microix receives the shopping cart from the vendor a requisition will be created and user will navigate to My Document list to open and review before submitting for approval. After final approval, the purchase order will be available for the employee or purchasing department to submit electronically to the vendor via the ribbon menu "Submit Order to Vendor"

Use the following article to retrieve a copy of Microix CXML document if the vendor request a copy for troubleshooting purposes.

Microix Help Desk - How to capture the raw Punchout CXML file - Knowledge base
